Heusinkveld Ultimate+ Black Pedals

Enhance your simulator experience. Heusinkveld presents some of the highest quality, most adjustable and most realistic feeling pedals on the market: Heusinkveld Sim Pedals Ultimate+. Trusted by world class GT, single seater and Esports drivers, this high-end pedal set can be used in the most demanding environments. Capable of simulating pedal loads as high as in real GT and F1 cars. Now available in a new black colour.

Throttle

Smooth, accurate and greatly adjustable, the throttle pedal gives you excellent control with exactly the travel, spring preload and resistance you prefer.

The throttle features a 1-way hydraulic damper which resists speed at the ingoing stroke. This helps with smoothing the throttle application and is also used on many real cars for this purpose. The amount of damping can be adjusted.

A load cell provides a true linear input measurement of the pedal position. Custom non-linear output curves can freely be configured using Heusinkveld SmartControl software.

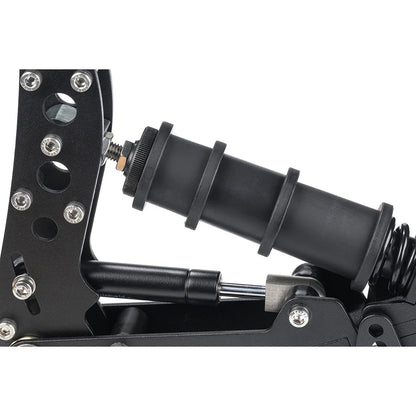

Brake

The brake features a realistic dual stage brake system with a 200kg load cell, capable of handling actual pedal forces up to 140kg (measured at the pedal footplate). The adjustable coil spring simulates the initial pad-to-disc gap. The main brake springs are all new custom made Heusinkveld injection molded thermoset elastomers.

These proprietary elastomers are smooth and responsive and provide an unprecedented progressive brake resistance (convex force curve) just as you would have in a real race car. On the ingoing and outgoing stroke they have firm bump and rebound characteristics.

Automated testing shows these elastomers have zero performance degradation even after one million duty cycles. You can choose from a total of 9 possible resistance settings, allowing you set set the pedal from very soft to extremely stiff.

The brake features a 2-way hydraulic damper. This damping resists speed at the ingoing and outgoing stroke just as experienced in actual brake assemblies. The amount of damping is adjustable.

Clutch

A clutch feels lighter towards the end of travel. The Sim Pedals Ultimate+ clutch features a regressive spring mechanism simulating this concave force curve and also allows you to greatly adjust the pedal resistance, travel and feel.

The clutch features a 2-way hydraulic damper. This damping resists speed at the ingoing and outgoing stroke just as seen in real clutch assemblies. The amount of damping is adjustable.

A loadcell provides a true linear input measurement of the pedal position. Custom non-linear output curves can freely be configured using Heusinkveld SmartControl software.

Electronics

Heusinkeld Sim Pedals Ultimate+ use a custom made 12-bit USB controller, which works with Heusinkveld SmartControl software. After calibration every single pedal provides an output signal using the full 12-bit range, providing instant and accurate output to your favorite simulator software.

The controller enclosure is made of steel and is equipped with 4 mounting holes for easy mounting to your simulator. It can also be mounted to the underside of the optional Sim Pedals Ultimate+ Baseplate.

The pedals have passed full EMC compliance testing, guaranteeing a stable output signal regardless of other electronic components used in your simulator.
