ASR 3 (Generation 2) Chassis

DESCRIPTION

• Generation 2 Improvements & Changes
  • Brand new wheel deck design that offers even more flexibility and adjustability for the position of your wheelbase.
  • Now offered with our signature "Flat Face" Generation 2 Extruded Aluminum Profile.
  • Completely overhauled assembly and design principles that allow for a much faster build involving less parts and most importantly, optimized stability and rigidity for the entire chassis.

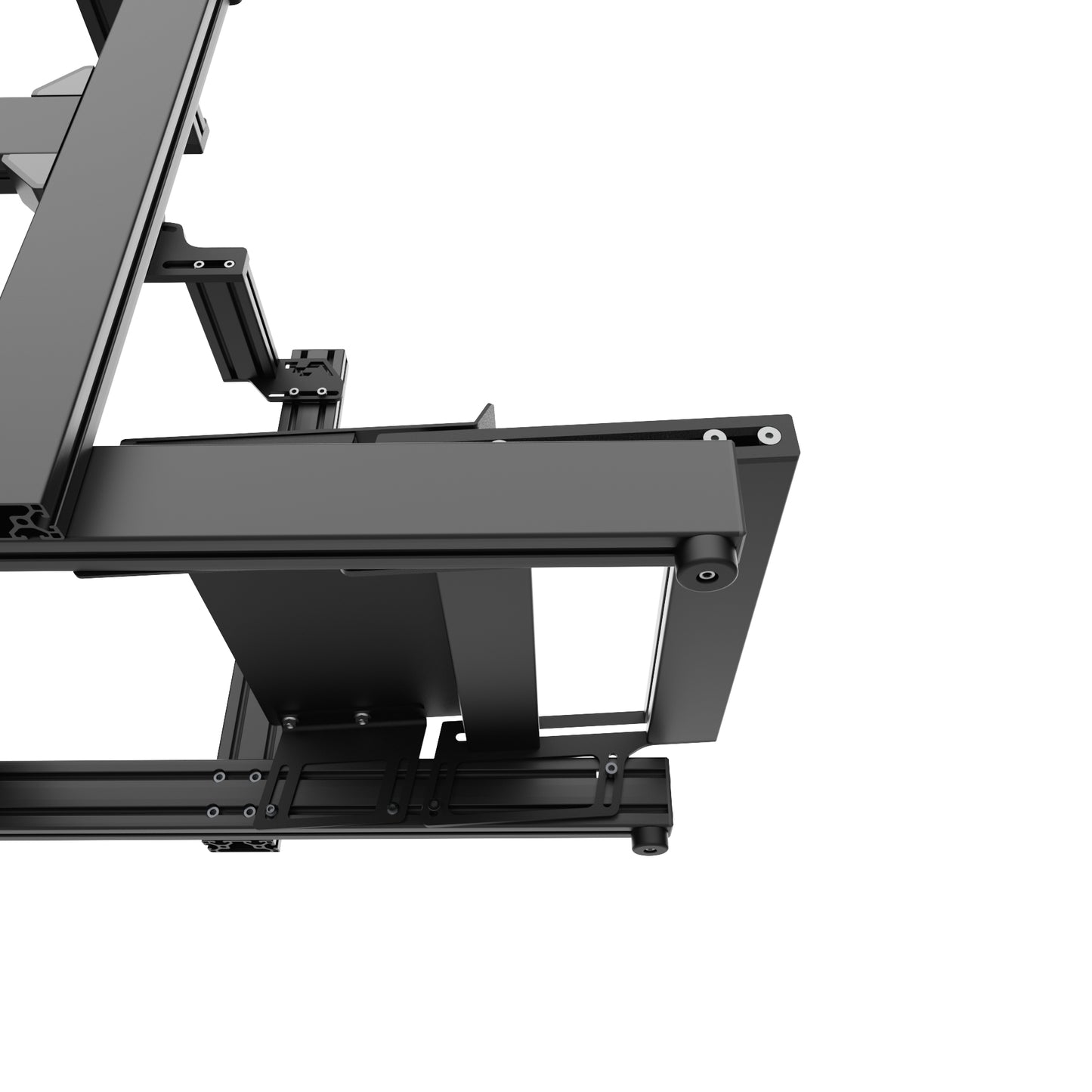

  • Now offered with our brand new New Generation 2 Aluminum Pedal Tray & Heel Rest design which allows for industry-leading compatibility and maximum adjustability for the position of your pedals.
  • Using key learnings from our Generation 1 ASR PRO flagship chassis, we have improved the assembly and mounting system to offer the maximum possible rigidity and stability on this mid-range chassis.
• The ASR 3, with its 3" aluminum profile base, is our mid-range chassis that doesn't compromise on any level and offers SimRacers excellent value for their investment.
• We created this affordable chassis with one objective in mind : Zero flex and no weak points whatsoever.
• The ASR 3 is robust enough to support any kind of belt-driven or direct drive powered wheel base. Although it doesn't feature heavy duty aluminum profile like our upper tier models, it is made of top-grade alloy Aluminum sourced in Canada.
• Produced and packaged in Canada with the utmost care and attention.
• Although a bit more constrained when it comes to pedal plate adjustment and angle possibilities when compared to the ASR 4 & 6, the chassis will still be easily adjustable in pedal height, angle, and position depending on the racing style and comfort level you are looking for.
• Highly adjustable wheel deck that gives you the opportunity to create your own customized and optimal racing position.
• The ASR 3 is available in Matte Black (powder coat). Our proprietary powder coat formula is designed for extra durability, enhanced scratch protection and of course, the pristine look that will transform your simulator into a head-turning centerpiece.
• Chassis size and format is adequate for most builds and heights (Up to 6'6" or 1.98m).
• Please note that all steel parts such as Wheel Mounting Plates and Pedal Plates or Trays come in a textured matte black finish (Powder coat)
• Four Wheel Deck options available :

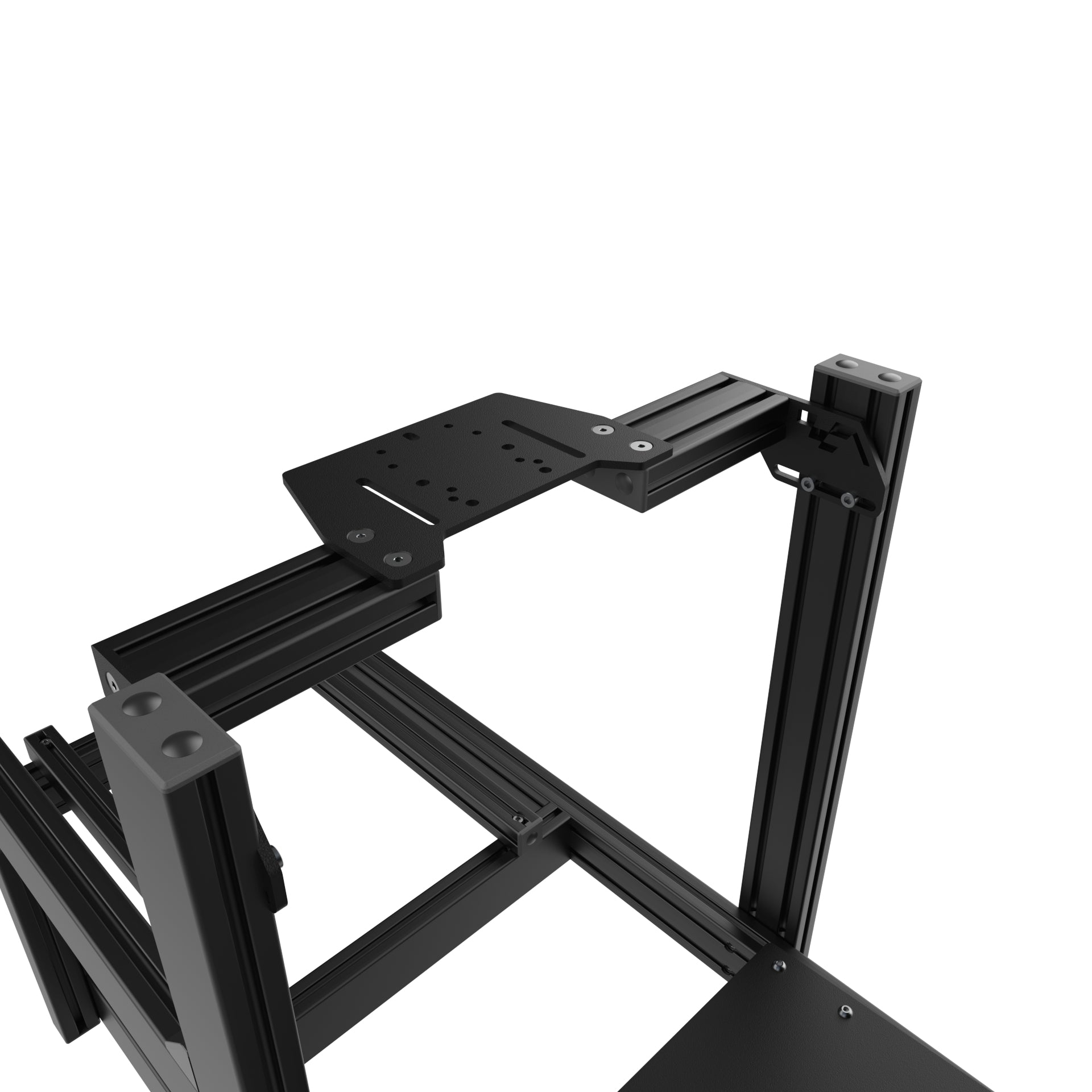

• Standard Wheel Deck (Entry level and mid-range products from manufacturers such as Thrustmaster, Fanatec and Logitech)

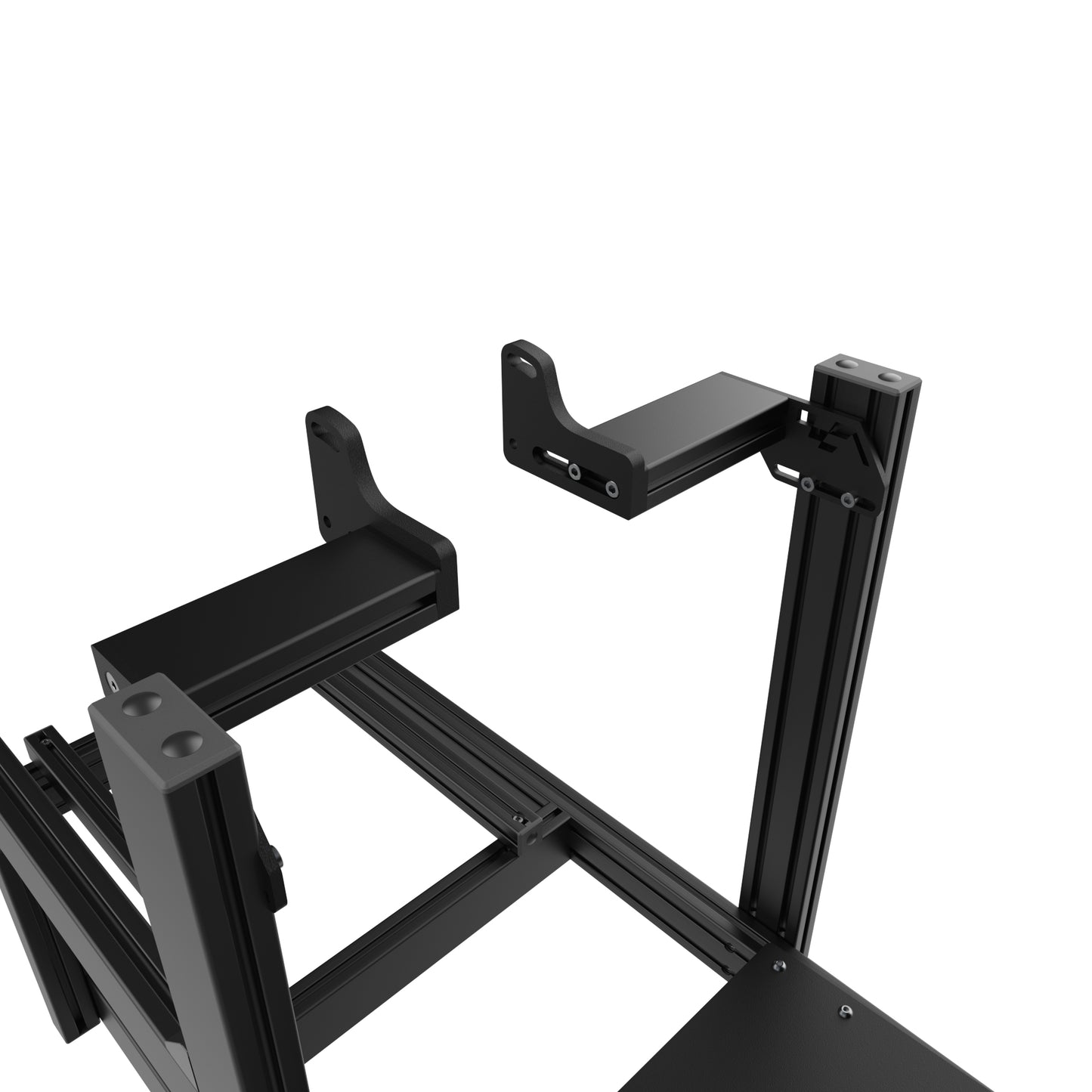

• Podium Side Mount (Covering the entire Fanatec line-up)

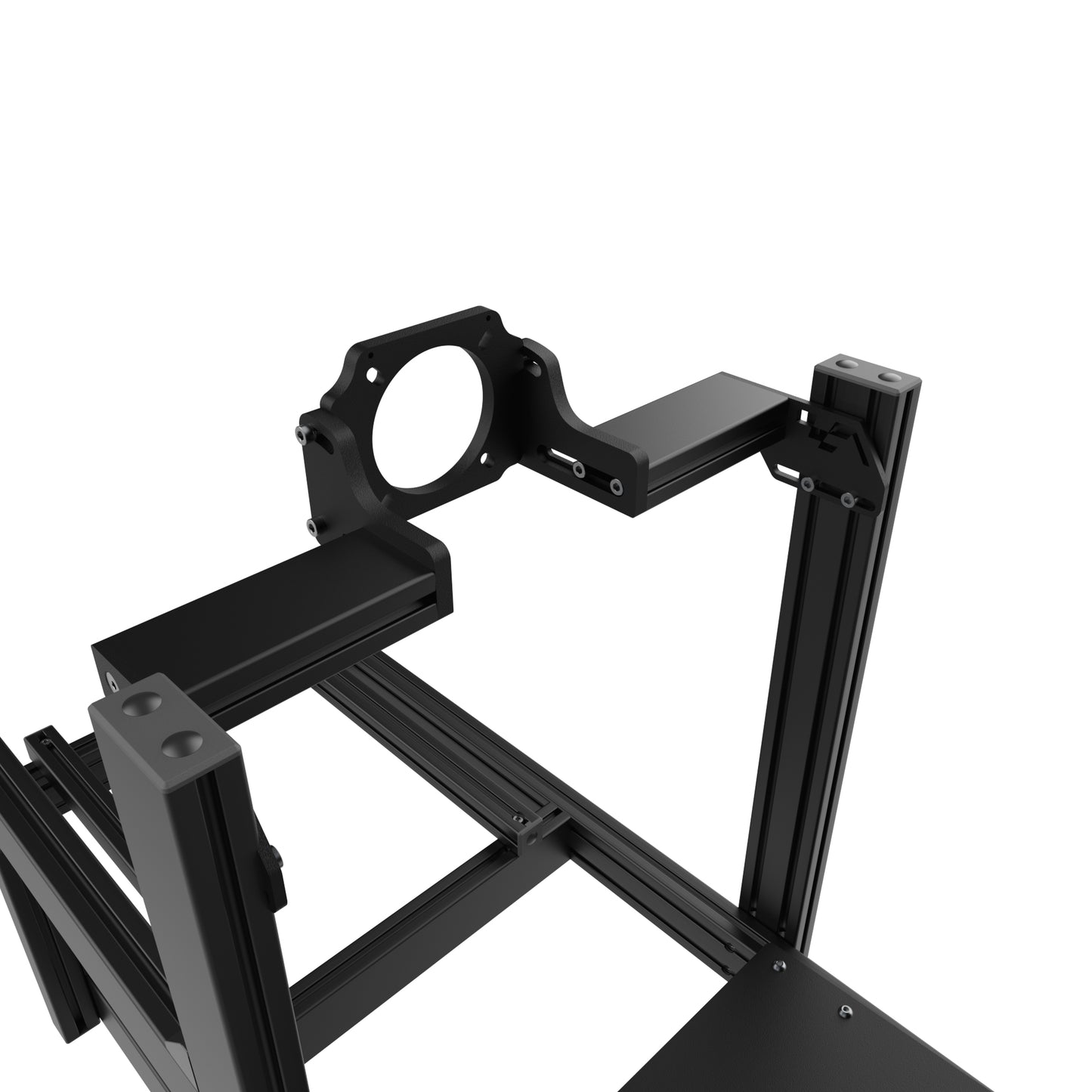

• Front Mount (MiGE Motor-type wheel bases, such as Simucube products, Simagic Alpha / Alpha Mini, VRS products and other front mounting products)

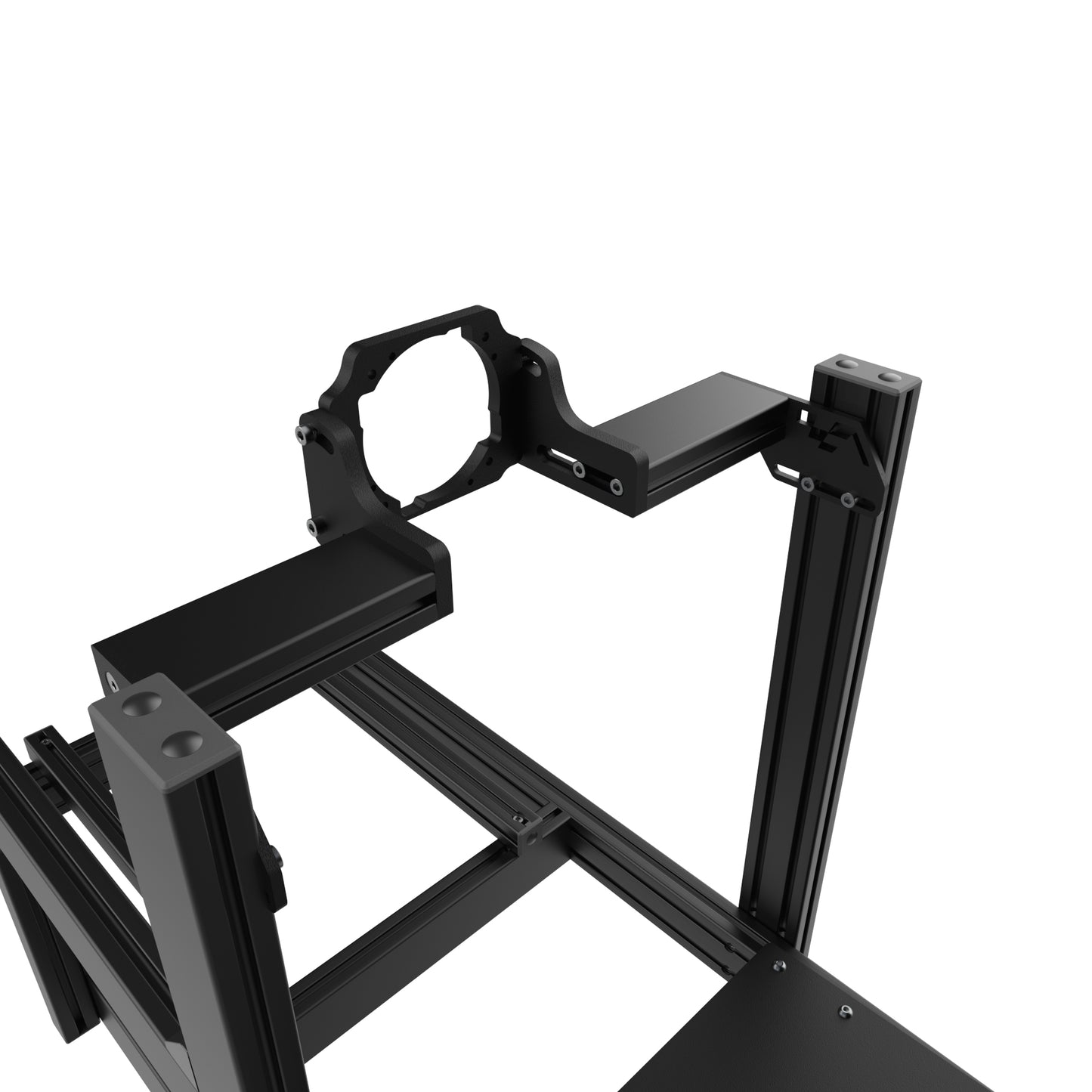

• Asetek Front Mount (Exclusively for Asetek Products)

SPECIFICATIONS

• Base composition : 3" x 1.5"
• Steering column composition : 3" x 1.5"

• Base length : 50"
• Base width : 22"
• Chassis height from adjustable rubber feet to tip of the steering column : 28"
• Weight when assembled (w/o accessories): 71lbs.

COMPATIBILITY

• Standard Wheel Deck
• Logitech products
• Thrustmaster products
• Fanatec entry-level and mid-range products (including the CSL DD and Podium DD products)
• Simagic M10

• AccuForce Pro V2 Steering System
• Moza R9, R12, R16, R21
• MOZA R5 (Only back two bolts)
• Fanatec (Podium DD & CSL DD Side Mount)
• Fanatec Podium DD1 & DD2
• Fanatec CSL DD
• Fanatec GT DD Pro
• Fanatec ClubSport DD and DD+
• Asetek (Front Mount)
• All Asetek Wheel bases
• Simucube & MiGE Motor (Front Mount)
• Simucube 2 Sport, Pro & Ultimate
• VRS Direct Force Pro
• Simagic Alpha / Alpha Mini
• Other MiGE Motor-type wheel bases
• Steel Pedal Plate
  • Sim Pedals Sprint
  • Sim Pedals Ultimate
  • Sim Pedals Ultimate+
• Asetek SimSports Invicta Sim Racing Pedals
• Heusinkveld
• Thrustmaster products
• Fanatec products (Except CSR Pedals)
• Logitech products
• Simtrecs ProPedal GT
• Asetek SimSports Invicta Sim Racing Pedals
• Simagic P1000 & P2000 & their inverted versions
• And much more (please inquire for specific pedal sets)

ASSEMBLY GUIDE

The ASR 3 (Generation 2) assembly guide is available right here.

SHIPPING AND LEAD TIME

• FREE SHIPPING to all of the Continental U.S., the European Union and Canada (excluding Yukon, Northwest Territories & Nunavut).
• IMPORT DUTIES COVERED for U.S. and European Union based customers.
• We ship from Montreal in Canada.
• Once the items have shipped, transit time typically takes between 2 and 4 business days
• Please note that all large items, such as our SimRacing Chassis, Monitor Stands and Racing Seats, might not arrive on the same day as other parts of your order. Because of their weight and size, these boxes get sorted differently at our shipping partner's logistics hub.
